FUSION 360 FOR DESIGN & MANUFACTURING OVERVIEW

You’ve heard me talk about Fusion 360 and how Autodesk is adding more and more functionality to the product. In this blog and my upcoming blog, I will dive deep into why Fusion 360 is such a disruptive technology on the market and why industry and educational institutions are becoming more interested in what Fusion 360 has to offer.

This blog will explain what Fusion 360 is and introduce the Design Workspace, Generative Design Workspace, Rendering Workspace and Animation Workspace.

So, what is Fusion 360?

Fusion 360 is the first collaborative, cloud-enabled CAD, CAM, CAE, and 3D PCB design platform that allows designers and engineers across the industry to connect, collaborate and ultimately bring products to market faster than ever before.

How can Fusion 360 connect users?

Design in the manufacturing industry can mean many things.

Are you a product designer? Do you primarily use Solid Model design? Do you require surface modelling techniques? Do you require FEA simulation to prove aspects of the design? How are your models used downstream? For example, do you require electrical components design to help finalise the size requirements of your product? How will the product be manufactured? Are you using CNC machining techniques to produce a working product? Do you require specialist work holding to allow the machining of the product? Can you require a rapid prototype of the product to help with ergonomics or provide a customer with a sample of what the product will look and feel like?

The above aspects of a design process can be challenging to pull together when working across different departments, design platforms and user skill sets. With Fusion 360, all these aspects of the product design and manufacturing workflows are merged, allowing users to access key design information required in their specialist areas whilst having the capability of capturing all design and manufacturing related information on one easy to navigate platform.

Fusion 360 also brings different hardware users together as the platform is supported on Windows and Apple Mac solutions.

How does the platform help users realise their design and manufacturing capabilities and bring products to market faster?

A product designer uses Fusion 360's in-depth design tools to develop the concept(s). A design engineer then takes the idea and starts to plan how the image can be brought to manufacture. This could include material selections, size requirements, surface finishes and tolerances, paint specifications etc., generating BoMs to be included with in-depth technical drawings alongside documentation such as FEA analysis and reports. The Electrical engineer starts to generate the required PCB designs to ensure the components fit into the design concept and advise where changes may be necessary.

Each department has access to the same model information and can collaborate using the Fusion 360 Team, where mark-ups and comments can be stored. Reports generated highlighting each stage of the design process. The manufacturing departments can also start to take the models and produce toolpaths strategies required to machine any Jigs, Fixtures, and Soft Jaw work holding devices and plan any other machining requirements to ensure the product can be manufactured efficiently and in the safest possible way.

With all this information being generated, a realistic rendering of the design concept can be used to help generate pre-sales visualisation of the product or potential marketing material to showcase the finalised design and build awareness of the new product being brought to market.

With Fusion 360, all the above departments use the same model information, allowing each department to contribute to the design and successfully capture required specialist knowledge by actively collaborating to ensure all project information required to design and manufacture the new product efficiently is available. Any changes needed throughout the process are noticed and tracked throughout departments instantly. This enables each department to work on the specialist subject early in the design stage.

Let’s take a look at some of the Fusion 360 Workspaces and User Interfaces:

The Design Workspace:

This workspace offers Product Designers and Design Engineers comprehensive tools with both top-down and bottom-up modelling techniques where Solid Modelling, Surface Modelling, Mesh preparation and modification, and Sheet Metal and Plastic Part design tools are readily available.

Users can also take advantage of the automated modelling features where designs can have specific design constraints attached. Fusion AI will then produce multiple iterations of the design based on the constraints giving the designers multiple outputs of the same design, helping reduce the over-engineering of components, - whilst potentially reducing waste created in the manufacturing process.

The Generative Design Workspace

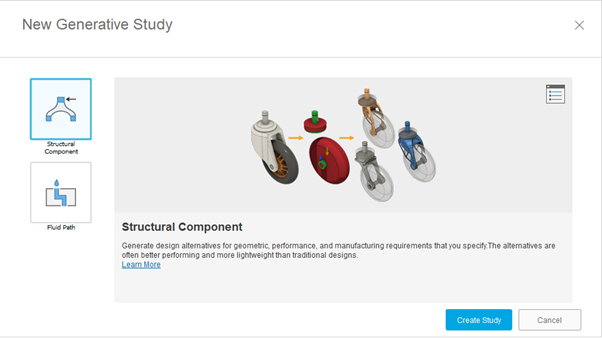

Design Engineers can also take advantage of the Generative Workspace, which uses similar AI technology as mentioned previously with Automated Modelling techniques but takes the possibilities to the next level.

Generative Studies define a set of data that describes a specific design-related problem. Design objectives such as functional, manufacturing, and mechanical requirements alongside material types and any performance related criteria can be captured in the study setup, which will generate a set of designs that meet the pre-set requirements once performed.

Multiple studies can be created and cloned, and the data ultimately captured throughout the design process giving further design flexibility with numerous product outcome possibilities. Why would you not want to explore this feature?

The Render Workspace:

The Render Workspace offers users high-quality realistic rendering features allowing designs to be visualised as a finished product. Over time many companies I have worked with have yet to realise precisely how much their historical designs are worth, especially when they can be showcased for marketing purposes, pre-sales, sales activities, high-quality technical documentation, website articles and offerings.

Fusion 360’s Render Workspace allows users to apply materials and appearance options to a given design quickly and apply and manipulate scene settings. You can add decals that blend perfectly with the model geometry and materials/appearance selections, and the ability to adjust texture map controls amplifies the visualisation outcome.

Fusion 360 has canvas and full cloud-render capabilities allowing clear and comprehensive realistic visualisation of the product being designed.

The Animation Workspace:

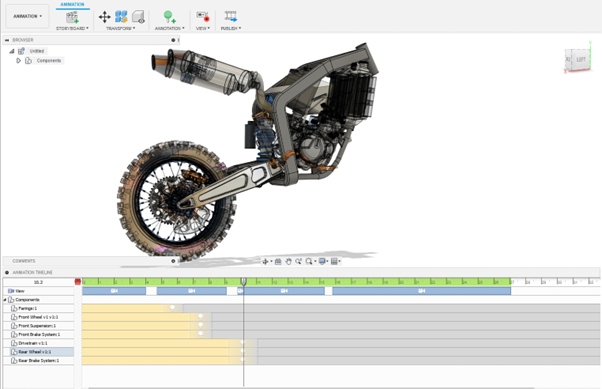

Fusion 360's Animation Workspace allows users to generate animations of their design and output to an AVI file format. The animations could include general product showcasing, explosion or reverse explosions of their products and can be used for marketing, presentation requirements or even training materials.

My experience of using animations in an industrial training setting allows users to understand a given workflow quickly. For example, when changing components on a machine, an animation accompanied by technical documentation in the form of an electronic user manual where the reader can learn about a process but then quickly visualise how something is done. This increases workflow efficiency and delivers a better safety perception of complex tasks requiring a specific step by step requirement.

The Fusion 360 Animation Environment looks and feels like the Autodesk Inventor Presentation Environment and is very easy to use, where manual and automated techniques for positioning components can be placed on an easy to navigate the timeline.



The Simulation Workspace

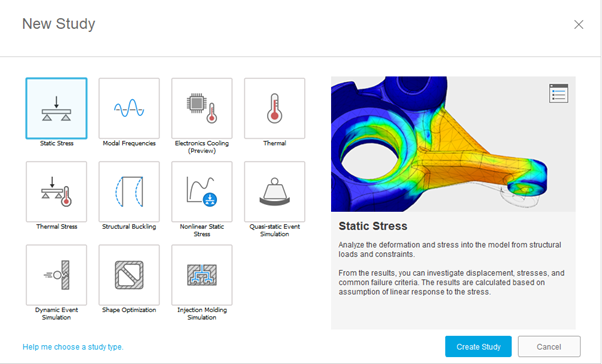

The Fusion 360 Simulation Workspace allows Engineers to perform simulation studies of different FEA concepts on the design models. The following image is an overview of the types of study that can currently be generated:

These tools available in the preliminary design stage allow engineers to perform in-depth testing on the products during the design phase to help reduce errors and improve the product’s overall safety before the manufacturing process starts.

Fusion 360 users also have an advantage where you can import any native CAD file from any CAD package on the market and perform FEA tasks when required. Models can also be simplified in the Fusion Design or Simulation Environments that allow output to other third-party FEA tools that may be used in the design or quality departments, for example, ANYSYS, CFD etc.

The Manufacture Workspace

Fusion 360's Manufacture Workspace offers the CAM Engineer a comprehensive set of manufacturing setup options for Milling, Turning or Mill/Turn, Cutting, Additive, Inspection and Fabrication type workflows.

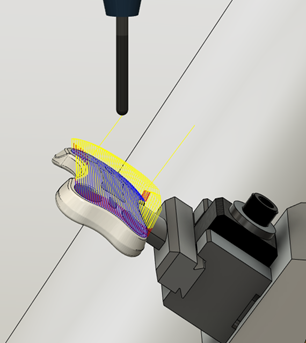

The types of toolpath strategies available include 2.5-Axis Machining, 3-Axis machining, 3+2 (5-Axis Positional) Machining and 5-Axis Simultaneous Machining techniques. Recent updates are incorporating high-end machining strategies such as Steep and Shallow finishing found in Autodesk Flagship CAM package PowerMill, including multi-axis capabilities and collision avoidance, strengthening the machining capabilities that Fusion 360 has to offer.

As the associative behaviour of Fusion 360, where changes are made in the Design Environment, is automatically updated and reflected in the Manufacturing environment meaning that CAM related rework to applied toolpath strategies is kept to a minimum and captured with the design change.

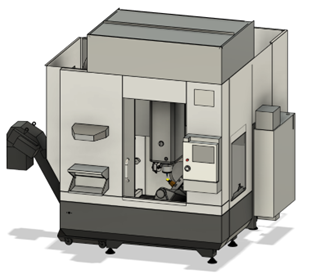

Autodesk Fusion 360 offers an excellent machining simulation environment allowing CAM Engineers to simulate their toolpaths. They can check for collisions and gouges. Adjustments can then be applied to the toolpath strategy to ensure a high level of safety before generating the NC code required to operate their expensive CNC machinery.

Autodesk gives users access to a free online library of generic post processors, machine simulation files and tooling libraries where all the big players in the CNC world are accommodated for. They are constantly updated with the new and required functionality, including new machines and post-processors being added regularly

If you are unable to locate the desired post processor and or machine simulation file, you have two options:

Option 1

Autodesk released instructions on manually creating and manipulating post processors, which can be found on the Post Library Website.

Option 2

Manufacturers can approach highly training Autodesk Partners, who are happy to take on post-processor development projects to get you up and running with the software by producing working post-processor and machine simulation files to suit your needs.

If you are looking at adopting Fusion 360 for manufacturing, exploring the Post Processor Library is the perfect place to start. You will be surprised to see so many post processors available for free. If you find a post relating to your CNC hardware, why not see if you can replicate the required toolpath strategies created with your current CAM solution?

Symetri offers excellent services to help you explore Fusion’s functionality and see if the adoption is right for you. We can take your models, apply toolpath strategies, and generate test code to see if further alignment is required for a working post-processor. We also offer comprehensive best-in-class training around all the CNC machining capabilities mentioned above.

The Drawing Workspace

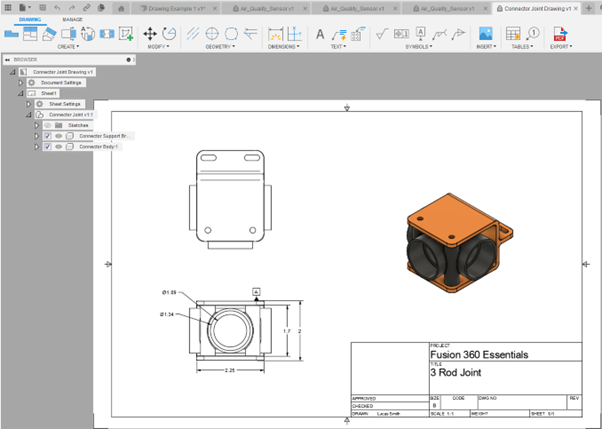

The Fusion 360 drawing workspaces allow engineers to create technical drawings based on their designs. With the associativity between designs in any project, changes made in the design workspaces are automatically reflected in the associated drawing.

As expected, drawings can be generated for parts and assemblies. Still, they can also be generated from a design or animation, making it easy to quickly support your manufacturing process with the correct technical documentation when required.

Electronics Design

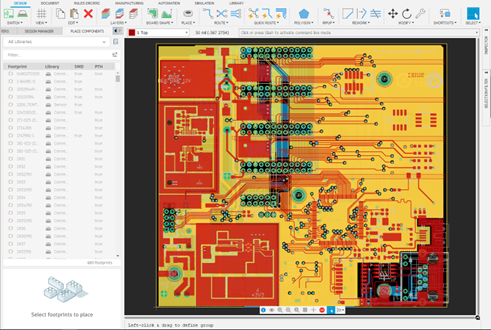

Electrical Engineers have access to a comprehensive PCB Electronics design suite where combining model geometry designed in the Design Workspace and complex PCB layouts requirements can be created and incorporated into the live design.

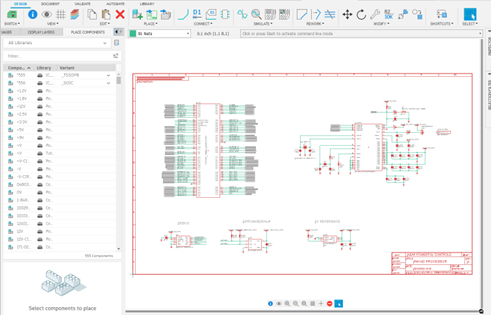

Electronics Engineers can switch between PCB documents and Electrical Schematic and incorporate replicated and visible information between the different environments.

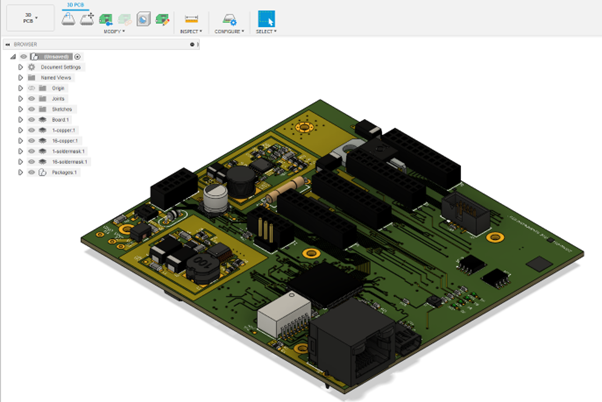

Electrical Engineers can generate electrical schematics relating to the PCB designs and automatically push to a 3D PCB layout that can be used to design the required housing, the ability to perform FEA simulations, and more.

So how can Symetri help you work smarter?

Industrial Training, Support and Mentoring:

Symetri offers a wide range of training courses, from Essentials Training to Advanced Multi Axis Machining training. These training courses are designed to get you up and running with the technology as quickly as possible. We understand that people come with different technical abilities, so laying the correct foundation in the learning process is key to how we conduct these training topics.

We also offer a Training Needs Assessment, where a highly skilled expert can conduct in-depth interviews with individual delegates to help them understand their current role, experience, and competencies. This allows us to evaluate and create a learning roadmap to ensure they are taught the correct subjects in the right order. This helps in retaining knowledge and building excellent customer relationships.

Symetri also offers unique support packages allowing engineers who are experiencing issues with software and workflow flexibility to log a support case and let our experts find a resolution to the problem.

Customers can also purchase project days that can be used for mentoring, where experienced product engineers can come and work alongside users helping them use Autodesk solutions on live jobs whilst passing on knowledge and experience, adopting the technology in a more streamlined approach.

Educational Institutions

Educational settings, including Secondary Schools, Colleges and Universities, can take advantage of fully funded onboarding sessions, where experienced Symetri Autodesk Certified Instructors will train and support teachers with the adoption process of the technology.

More and more educational settings are taking advantage of this service as Fusion 360 is taking the industry by storm due to its flexibility, versatility and further functionality being added regularly.

There is no need for lengthy product updates as the platform is cloud-based and only requires the user to restart the product once an update is available. These occur every 4 to 5 weeks, where improvements are constantly added based on user feedback and new expert functionality added to the core product or advanced user extensions. Preview features are also added to the product that the user can explore; the more people that use the preview feature, the more likely it will be added as a full feature in the future release.

My Conclusions.

So, whether you are an Educator, Product Designer, Mechanical Design Engineer, Electrical Engineer, Fabrication Engineer, CAM Engineer/CNC Programmer or Visualisation Expert, Fusion 360 has the required tools to design throughout each discipline. It allows you to collaborate intensely between departments and showcase the never-before-seen interconnectivity between each design and manufacturing stage. It effectively takes your new and existing products to market faster.

Want to learn more about Fusion 360 and its capabilities? Don’t hesitate to reach out and request further information from the Symetri team.

CONTACT US

By completing the form below or via email or telephone.













































Why would you not want to use these features and unlock the untapped potential of your CAD data?

In my next blog, I will detail the workspaces available in Fusion 360, Simulation, Manufacture, Drawing and Electrical.

For more information about Fusion 360, please visit our Website. Symetri also offers a wide range of training courses, from Essentials Training to Advanced Multi-Axis Machining training. These training courses are designed to get you up and running with the technology as quickly as possible. Take a look at our Fusion 360 Training courses.
