Simulation & Generative Design

Accelerate innovation with generative design and empower designers with easy-to-use simulation tools

Empower designers and engineers with Simulation

In today’s competitive market, engineers and designers constantly face new challenges within the industry, including reducing costs, decreasing weight and developing innovative product designs faster. As a consequence, companies are now looking to incorporate some form of digital prototyping to help reduce design-to-market lead times.

For your company to remain competitive today and in the future, you need to empower designers and engineers with easy-to-use simulation tools that will help you make better and informed decisions early on.

Symetri has a dedicated team of highly skilled engineers who can provide problem-solving services for most types of mechanical problems: from design and stress analysis of aeronautical equipment to heavy mining machines in Finite Element Analysis (FEA), and from the optimisation of cleanrooms for the pharmaceutical industry to cooling of defence-critical equipment and huge transformers in CFD.

You can rely on Symetri with Simulation, FEA and CFD of:

Pump performance

Pump performance

Predict fan curves with simulation and save time and prototype costs

Pressure drop in valves

Pressure drop in valves

Optimise design, predict pressure drop and avoid cavitation and erosion

Fatigue of welds

Fatigue of welds

Predict the fatigue life of your product

Stress analysis

Stress analysis

Easy-to-use tools

Buckling analysis

Buckling analysis

Check the structural integrity with respect to buckling

Drop test

Drop test

Perform a virtual drop test for any structure

Electronics cooling

Electronics cooling

See the invisible and maximise product performance

Cleanroom

Cleanroom

Design without recirculating air

Vibration & Modal dynamics

Vibration & Modal dynamics

Perform virtual vibrational tests within the CAD environment.

Indoor air comfort

Indoor air comfort

Simulate air quality very early on in the design stage

Flow of moving liquid

Flow of moving liquid

Simulate liquid and solid interaction

Simulation for marketing

Simulation for marketing

Visualise and market your products earlier

Accelerate innovation with generative design

Generative design can drastically reduce design and development times by allowing the designer and engineers to explore a multitude of design scenarios in a short space of time that would otherwise be impossible mainly due to cost and time.

Benefits of generative design include:

Light weighting – Minimise mass and material use while maintaining high-performance standards and engineering constraints.

Performance improvements – Use generative design to help improve and optimise product durability and eliminate areas of weakness.

Part consolidation – Consolidate multiple components into solid parts to maximise the potential of additive manufacturing.

Services that can help you in the simulation and design phases:

Training

Symetri offers training in all Autodesk Simulation products including Nastran, Finite Element Analysis (FEA) and CFD to help you get started quickly.

Mentoring

Symetri can help accelerate adoption by working with your specific applications on current projects.

Consultancy

We have extensive experience of delivering simulation projects.

Support

Symetri provides simulation support on Nastran, CFD and Fusion Simulation.

Cases

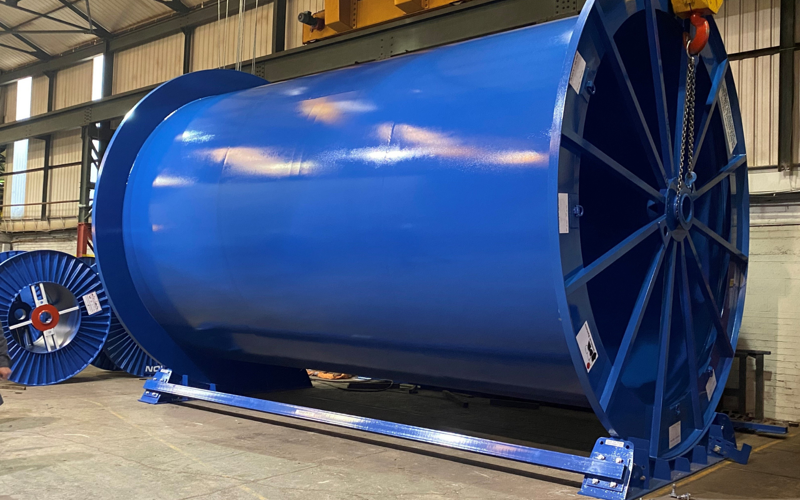

Symetri introduces Pentre Offshore Engineering to Altair SimSolid; achieving super-fast structural analysis in design

Pentre Offshore Engineering is part of the Pentre Group, formed in 1988 and now regarded as the leading manufacturer in Europe for reels, drums, spools, and ancillaries to the global wire and cable industry; any organisation involved in linear-wound products.

Read more

MECON SimSolid | Altair® SimSolid® enables Mecon—design and engineering for heavy industry— to slash its structural analysis time by 90%.

Meet Mecon

Founded in 1997, Mecon is an engineering design and fabrication company providing turnkey solutions for organisations in, among other sectors, the steel and mining industries in northern Sweden. The company is based across two locations, Luleå and Gällivare, also in northern Sweden.

Together with its partners and subcontractors, Mecon offers end-to-end solutions in mechanics, from feasibility studies to the finished product. Its flexible and responsive approach enables Mecon to design and fabricate new solutions to age-old problems. It works often with clients who may have depended on long-established ways of undertaking certain processes but had never found alternatives. Mecon challenges this acceptance of ‘the way things are done, accompanying its clients on a continuous journey of innovation.

Mecon focuses on delivering improved ways; more customised structures or machines than the standard solutions that clients often adopt. To sharpen this focus, Mecon was looking for technology that could ease the calculation process involved in designing the highest safety standards and ensuring the resistance of its products to the harshest operating environments.

Read more

Digital simulation reduces costs and shortens time from plan to product at EKOVENT

Using Simulation CFD software from Autodesk, a product’s pressure drop can quickly be simulated and verified at an early stage in that product’s development, a procedure that previously was time-consuming and expensive.

Read more

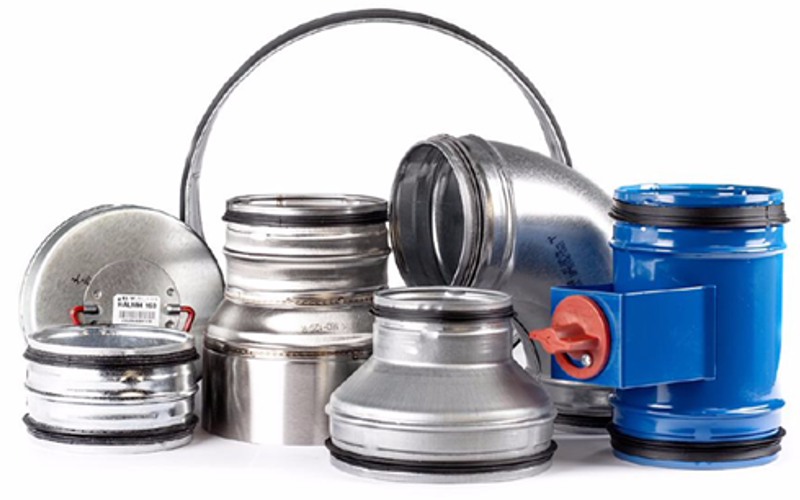

Hallströms Verkstäder improves its products by reducing pressure drops and optimising flows with simulation

Hallströms is an excellent example of how simulation can be used to improve the function of a product.

Read more

Innovative business decisions are supported by unique technology solutions

By designing an entire hybrid system for buses – covering everything between the fuel tank and the wheels with optimal performance of every component, Vantage Power has created a system that results in higher fuel economy, lower emissions and greater reliability than alternative systems.

Read more
